0.8mm Pitch Twin U Slot Insulation Displacement Connector with 3 Point Grip Construction

0.8mm pitch/disconnectable Insulation displacement IDC connectors ,equivalent of JST 02SUR-32S

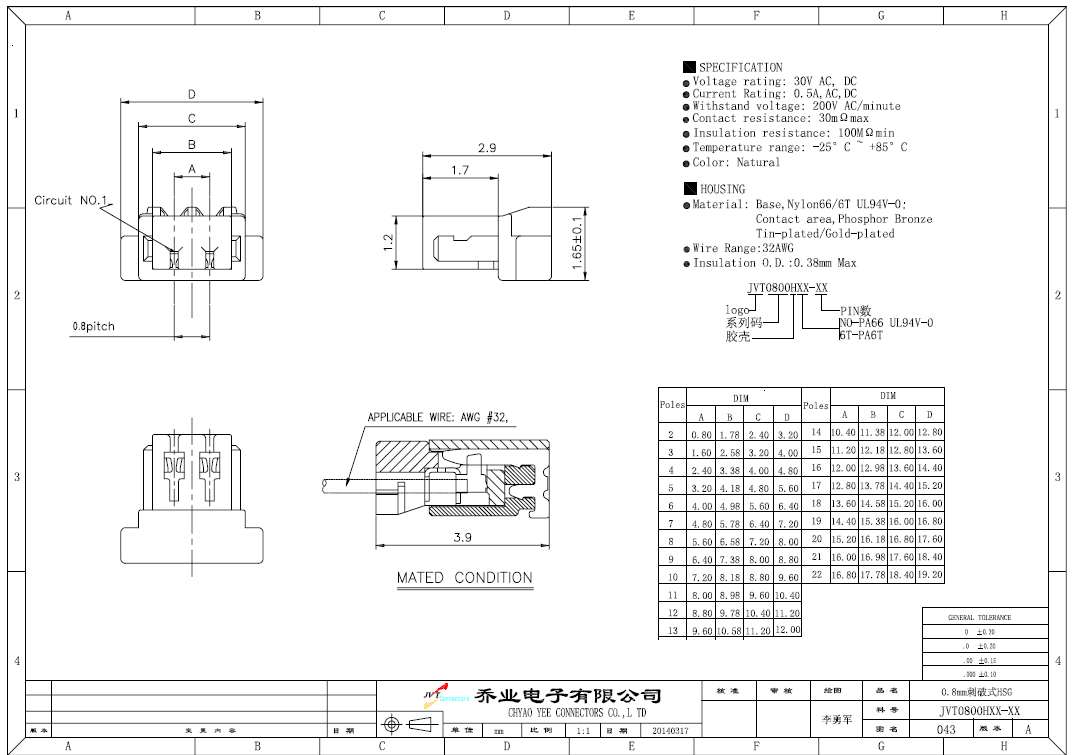

Datasheet (PDF) & Other Documents Download center:

1.JVT0800HXX-XX(SY) Model (1).pdf

The world's first 0.8mm pitch wire-to-board insulation displacement connector.

Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.

• 3-point grip construction
• Super fine wires are applicable
• Shrouded header
• Twin U-slot insulation displacement section

Specification Standardized:

Pitch: 0.8mm

Poles: 2-18

Applicable wire: AWG 32

Voltage rating: 1000V AC/DC

Current rating: 3A AC/DC

Withstand voltage: 1000V AC/minute

Working temperature: -40°C to +85°C

Insulation resistance: 5000MΩ Min

Contact resistance: 20MΩ Max.

Material Specification :

Housing :Nylon 66 UL94V-0

Wafer: Thermal Plastic,UL94V-0

PIN: Phosphor Bronze ,Gold plated

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Main Export Markets:

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality

Enjoying Excellent Geographical Location
Established in 2002 and located in Chang'an Town, Dongguan, which is near to Hong Kong and Guangzhou, Dongguan JVT Connectors has 13years of experience in the R&D of electronic connectors. Moreover, we have offices in Wujiang, Jiangsu and Hong Kong. We have advanced machines and technology from Taiwan.

Expert in Producing Terminals, Housings, Wafers and Connectors
We mainly manufacture all kinds of terminals, housings, wafers and connectors. We also offer various designs for a variety of connectors and battery welding pieces. They are widely used in electric appliances, communication equipment, LVDS displays and computers, and are well received by JAE, JST, Molex, HRS, DuPont and AMPS.

Meeting UL, SGS and ISO Standards
Because of our meticulousness in the whole production process, all our products are compliant with UL and SGS, and we have got the ISO 9001 :2008 certifications.

Working with Foxconn, Asus and Other Companies
We own advanced software and hardware facilities for development and production, as well as the most advanced high precision mold processing, production, testing equipment and software. With such resources, we have made products that attracted Foxconn, Asus, LG, Quanta, Siemens and Huawei to source from us.

Work with Us Today
We adhere to business ethics and fulfill the social responsibility in the fierce market environment to create a suitable development path and a world-class electronic connector enterprise. Contact us today to begin sourcing.
