JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal

    Buy cheap JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal from wholesalers

    Buy cheap JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal from wholesalers
    • Buy cheap JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal from wholesalers

    JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal

    Ask Lasest Price
    Brand Name : JVT
    Model Number : JVT2540&JVT2541
    Certification : ISO9001/SGS/UL/ROHS/Reach
    Price : Negotiation
    Payment Terms : T/T or Western Union
    Supply Ability : 300000 per month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

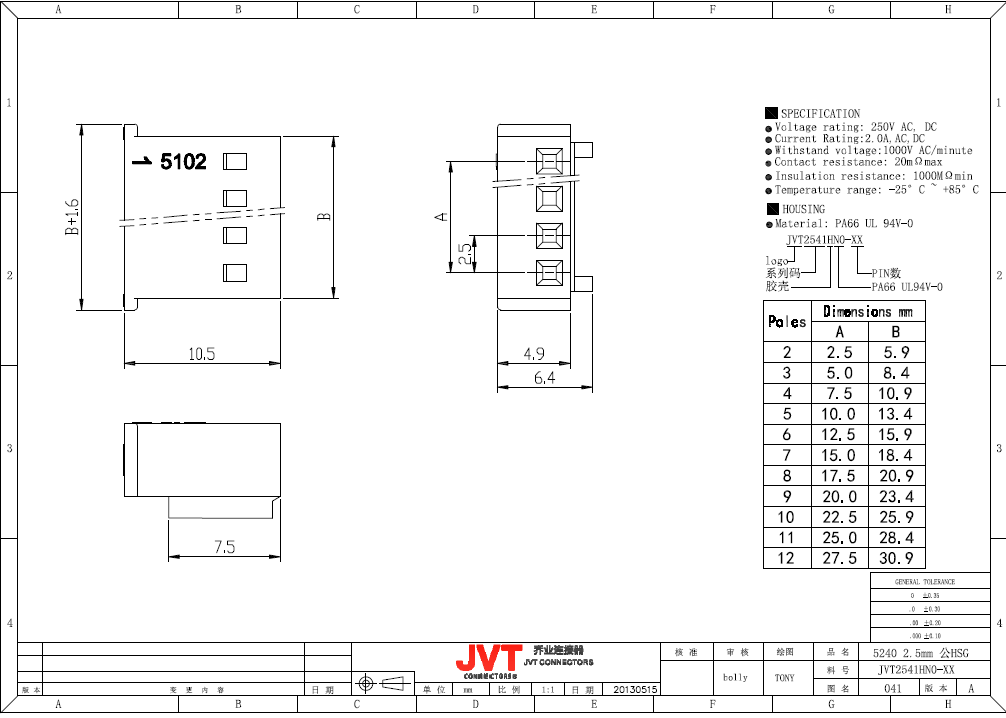

    JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal

    2.5mm Pitch 5A AC / DC Wire to Wire Connector , Tin Plated 2 - 12 Pin Terminal Connectors


    2.5mm Pitch for Wire to Wire Connector Applied with 5A AC / DC


    Specification Standardized:


    Pitch: 2.5mm Poles: 2-12

    Applicable wire: Voltage rating: 250V AC/DC

    Current rating: 5A AC/DC Withstand voltage: 5A AC/DC

    Working temperature: -25°C to +85°C Insulation resistance: 1000MΩ Min

    Contact resistance: 20MΩ Max.






    Material Specification :


    Terminal: Phosphor Bronze ,Tin plated


    Housing: PA66,UL94V-2


    Payment Details:


    Payment Terms:T/T or Western Union


    Minimum Order:1000 Pieces


    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals


    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America

    Equipment and Service:


    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines


    prefessional and patient pre-service & after-service


    professsional sales team & engineering team & techinology team


    puntual delivery time and complete packaging process


    preferable price and best quality
