    Female Housing / Crimp Contact Wire To Wire Connector 2.0mm Pitch Nylon 66 UL94V-0

    Ask Lasest Price
    Brand Name : JVT
    Model Number : JVT2003HNO-03
    Certification : ISO9001/SGS/UL/ROHS/Reach
    Price : Negotiation
    Payment Terms : T/T or Western Union
    Supply Ability : 300000 per month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

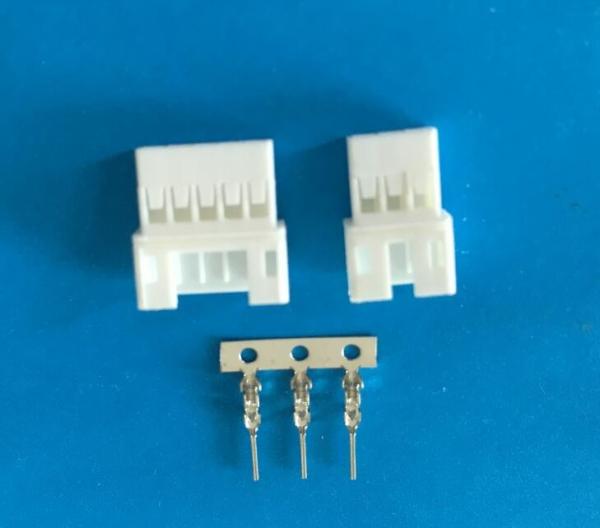

    Female Housing / Crimp Contact Wire To Wire Connector 2.0mm Pitch Nylon 66 UL94V-0

    female housing and crimp contact connector ,ph series JVT1124HNO-02W,2.0mm pitch ,Nylon 66 UL94V-0


    • Poles: 2 to 16P
    • Current rating: 3.0A AC or DC
    • Voltage rating: 250V AC or DC
    • Temperature range: -25 to +85°C
    • Contact resistance: ≤10mΩ
    • Insulation resistance: ≥500MΩ
    • Withstanding voltage: 1500V AC/minute
    • Applicable wire: #22 to #28AWG
    • Applicable PC board thickness: 0.5 to 2.0mm
    • Can offer dyeing service and can also produce various colors of products by using raw materials
    • Environment-friendly, no smell and non-fading
    • Molex, JST or other suppliers as per customer's requests
    • Various connector types are available
    • Used in most of home appliances, computers, PCBs, LCD and TVs
    • Customized drawings and specifications are accepted
    • ODM and OEM orders are welcome
    • REACH certified
    • RoHS Directive-compliant
    • Inspection: 100% tested before delivery
    • If do not find exact items need, please send specifications
    • Details:
