Brass 2.54mm Pitch SMT Female Header Connector With Cap Dual Row Reeled

    Buy cheap Brass 2.54mm Pitch SMT Female Header Connector With Cap Dual Row Reeled from wholesalers

    Buy cheap Brass 2.54mm Pitch SMT Female Header Connector With Cap Dual Row Reeled from wholesalers
    • Buy cheap Brass 2.54mm Pitch SMT Female Header Connector With Cap Dual Row Reeled from wholesalers
    • Buy cheap Brass 2.54mm Pitch SMT Female Header Connector With Cap Dual Row Reeled from wholesalers

    Brass 2.54mm Pitch SMT Female Header Connector With Cap Dual Row Reeled

    Ask Lasest Price
    Brand Name : JVT
    Model Number : JVT2546H506T-2xXXC-S
    Certification : ISO9001/SGS/UL/ROHS/Reach
    Price : Negotiation
    Payment Terms : T/T or Western Union
    Supply Ability : 300000 per day
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    Brass 2.54mm Pitch SMT Female Header Connector With Cap Dual Row Reeled

    2.54mm Pitch SMT Female Haeder Connector with Cap Dual Row Reeled for SMT-Pic&Place machines


    Friendly Link:


    Cross Part number list.pdf


    PCB SMT header connector.pdf


    Specification Standardized:


    Scale

    2.54mm

    Cables

    2-50

    Applicable wire

    AWG#22-28

    Rating Voltage

    500V AC/DC

    Rating Current

    2A AC/DC

    Voltage Withstand

    500V AC/minute

    Operating temperature

    -40°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max.

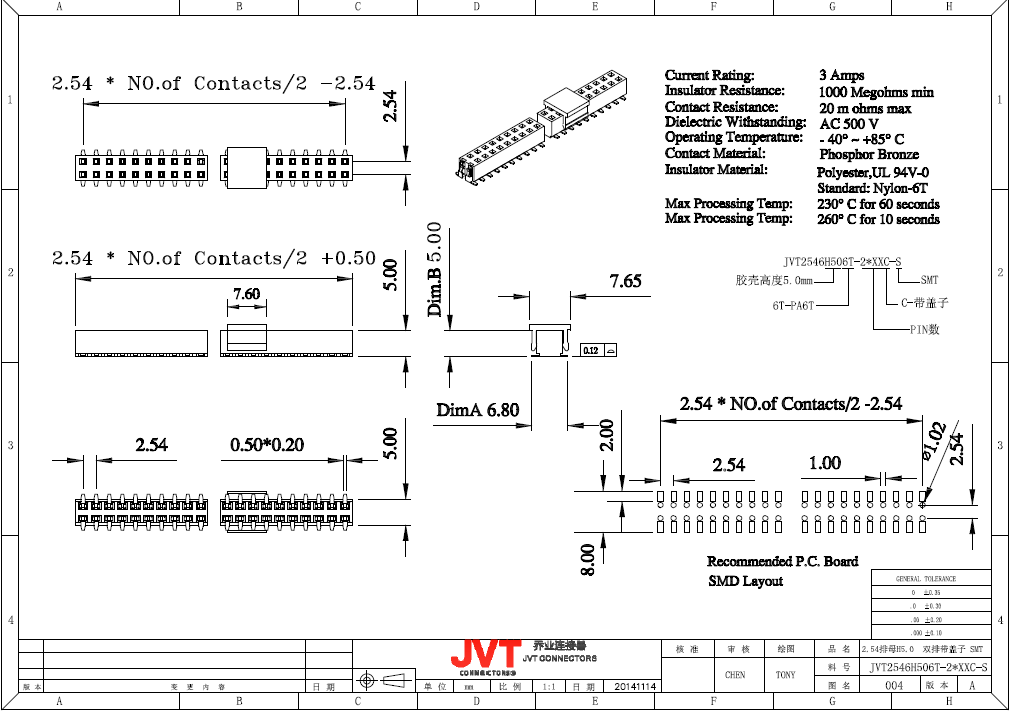

    Technical Datasheet:



    Material Specification :


    Housing: PA6T ,UL 94V-0


    PIN: Brass ,Gold plated


    Payment Details:


    Payment Terms:T/T or Western Union


    Minimum Order:1000 Pieces


    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals


    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America

    Equipment and Service:


    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines


    prefessional and patient pre-service & after-service


    professsional sales team & engineering team & techinology team


    puntual delivery time and complete packaging process


    preferable price and best quality
