XHB 2.5mm 6pin male housing Electrical connectors , natural color , application for PCB wire to Board

Specification Standardized:

Pitch: 2.5mm

Poles: 2-12

Applicable wire: AWG#22-28

Voltage rating: 250V AC/DC

Current rating: 3A AC/DC

Withstand voltage: 1000V AC/minute

Working temperature: -25°C to +85°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.

Material Specification :

Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: Nylon 66 UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated

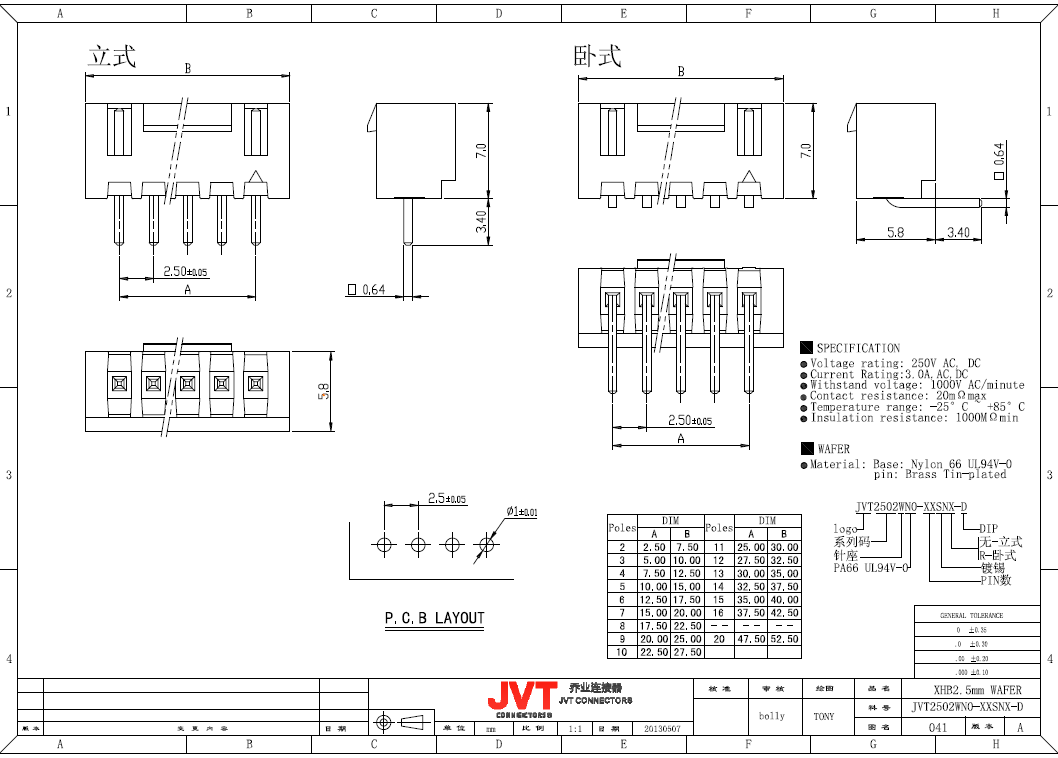

Drawing
