Brand Name : | JVT |
Model Number : | JVT1114 |
Certification : | ISO9001/SGS/UL/ROHS/Reach |
Price : | Negotiation |
Payment Terms : | T/T or Western Union |
Supply Ability : | 300000 per month |
Delivery Time : | 7-10 working days |
SGS / UL / ROHS 5.08mm Big 4P Power Cable Connectors for Signal 7A AC / DC
5.08mm Big 4P for Power Cable Connectors Application Signal 7A AC / DC
Technical Datasheets
Specification Standardized:
Scale | 5.08mm |
Cables | 4 |
Applicable wire | AWG#22-28 |
Rating Voltage | 250V AC/DC |
Rating Current | 7A AC/DC |
Voltage Withstand | 1500V AC/minute |
Operating temperature | -25°C to +85°C |
Insulation resistance | 1000MΩ Min |
Contact resistance | 10MΩ Max. |

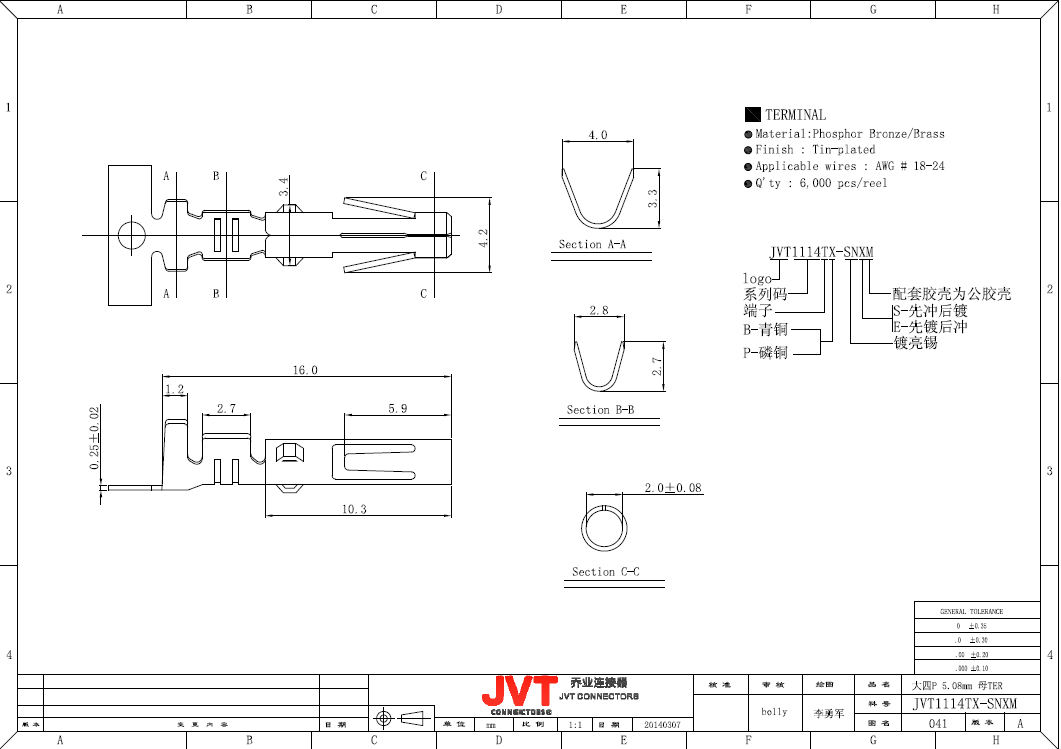

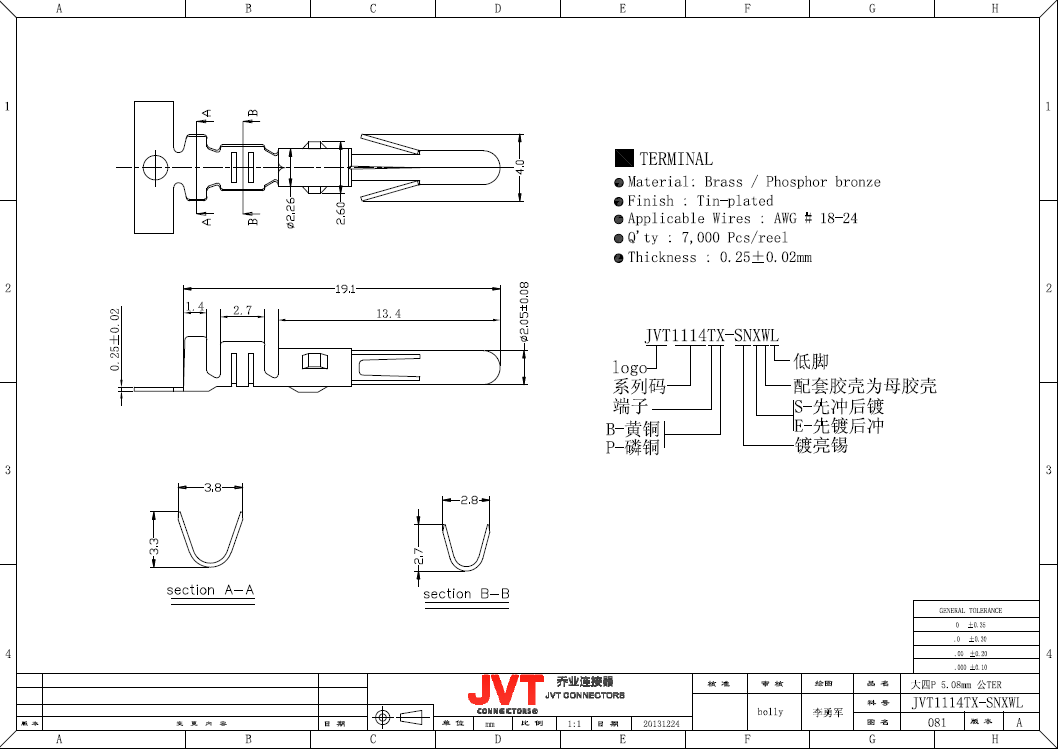

Material Specification :
Terminal: | Brass or Phosphor bronze,Tin/Gold Plated |
Housing: | PA66,UL94V-2 |
Wafer: | Brass ,Nylon 66 UL94V-2 |
PIN: | Brass ,Tin plated |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
![]() |
